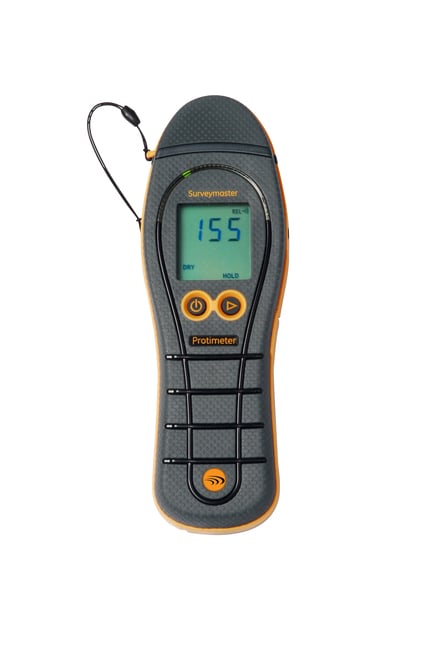

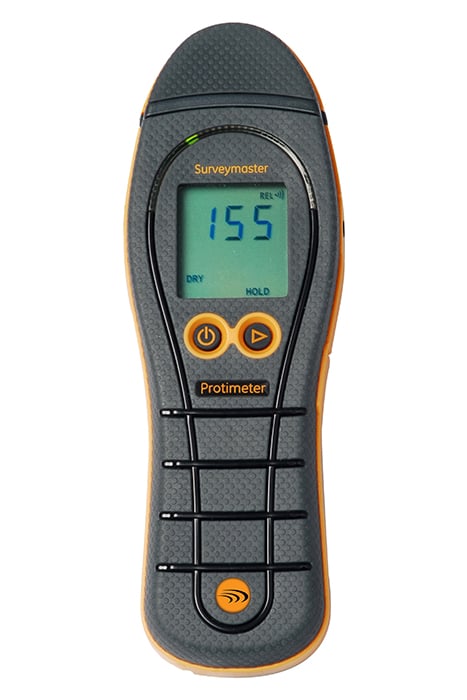

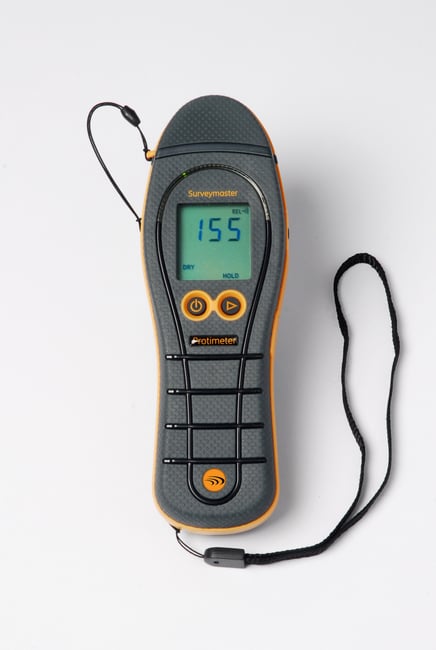

PROTIMETER SurveyMaster®
BLD5365
FOR USE WITH:
•Wood •Drywall •Building Materials •Concrete •Fiberglass Boat Hulls
Features
- Rugged construction
- Large backlit display

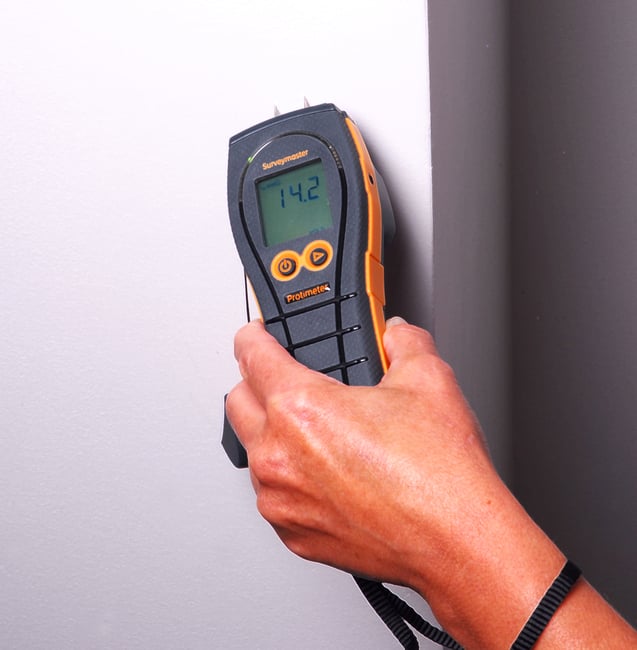

- Pin moisture measurement
- Non-invasive measurement up to ¾” (20mm) below the surface
- Wide range of accessory plugins
- Industry leading 2-year warranty
Benefits
- Easy-to-use
- Allows rapid assessment of building moisture
- Instant readings in a wide range of building materials

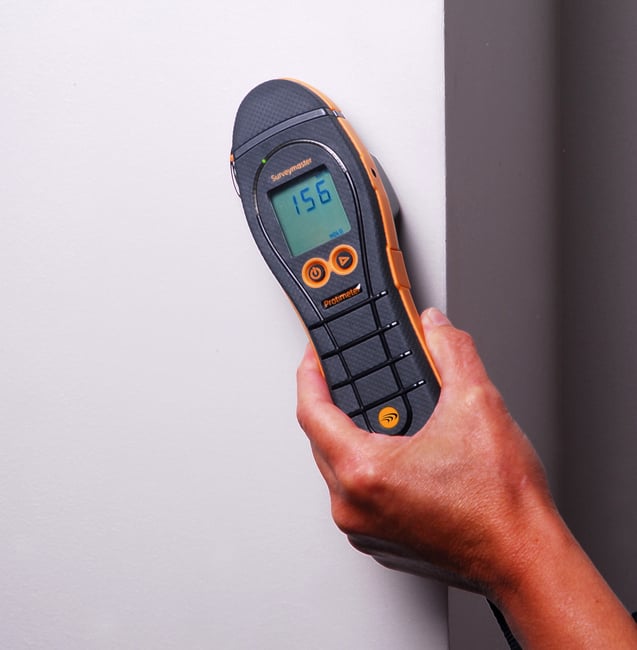

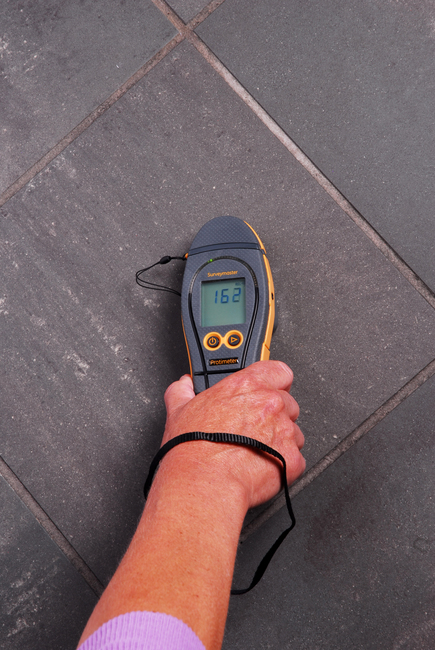

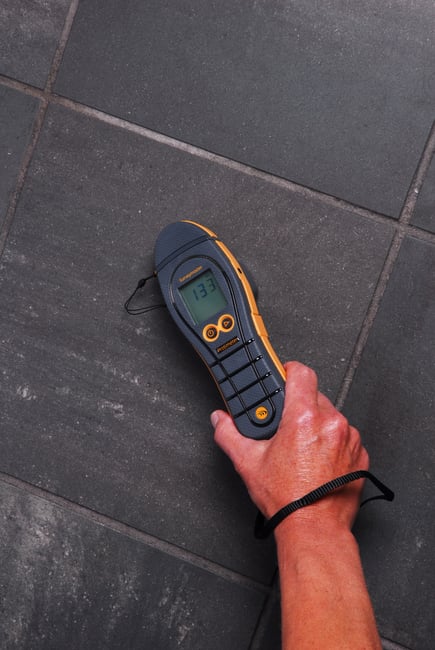

- Non-invasive measurement not adversely affected by surface moisture
- Two meters in one
Applications
When concise and accurate environmental readings need to be reported, the Surveymaster gets the job done. The ability to use both functions to instantly determine the potential evidence of excessive moisture makes this instrument ideal for many applications including:
- Building survey
- Fire and flood construction

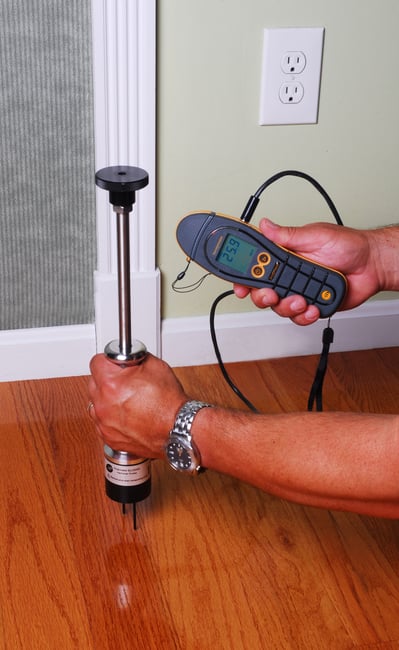

- Concrete and wood floor moisture measurement
- Indoor air quality
- Environmental health

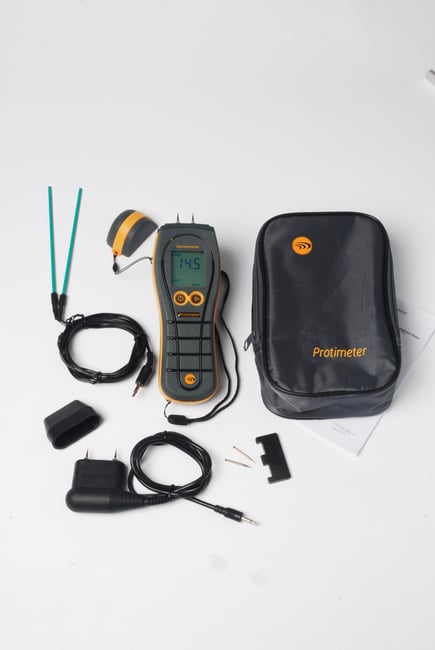

Options
| Part Number | BLD5365 Standard Supply | Optional Accessories | BLD5905 Technicians Kit |
|---|---|---|---|
| Surveymaster Instrument |  |
|
|
| Short Pouch | |
||

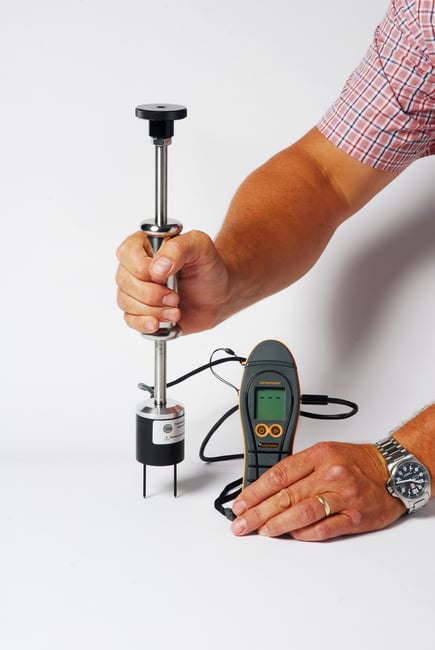

| HD Hammer (with 4 needles) | |
|
|
| 10 pack Hammer Pins | |
||
| HD MC Probe | |
|
|
| Deep Wall Probes 5" (127mm) | |
|
|
| Pin Calibration Check | |
|
|
| Instructions | |
|
|
| Wood Calibration Chart | |
|
|
| Deep Wall Probes 9" (240mm) | |
||
| Standard Hammer | |
||
| EIFS Probe | |
||
| EIFS Probe needles 4 pack | |
|
|
| Hygromaster 2 | |
Specifications
| Gross Weight | Meter with battery 8oz (225gms) |
|---|---|
| Dimensions (LxWxH) | 7.5 in x 2.75 in x 1.9 in (190 mm x 70 mm x 49 mm) |
| Maximum Needle Depth | 0.4 in (10 mm) |
| Display | Backlit LCD |
| Batteries (Included) | 1x9 V |
| Warranty | 24 months on mechanical or manufacturing defects. Does not include wearing part or accessories. |
| Pinless Measurement Range | Non-invasive (RF) up to 3/4 in (19 mm) deep 60 to 1000 (relative) |
