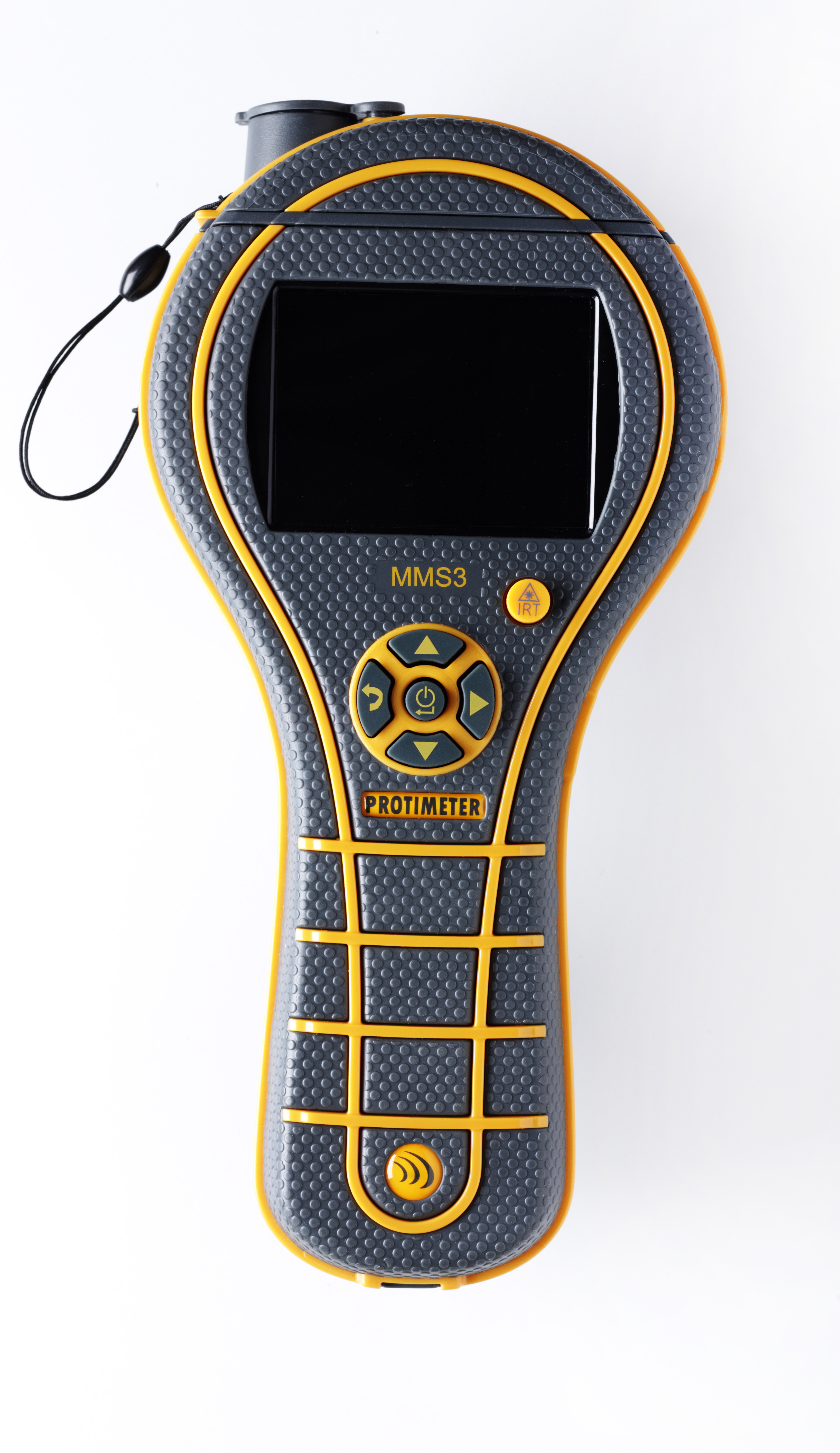

PROTIMETER MMS3®
BLD9800
FOR USE WITH:
•Wood •Drywall •Building Materials •Concrete

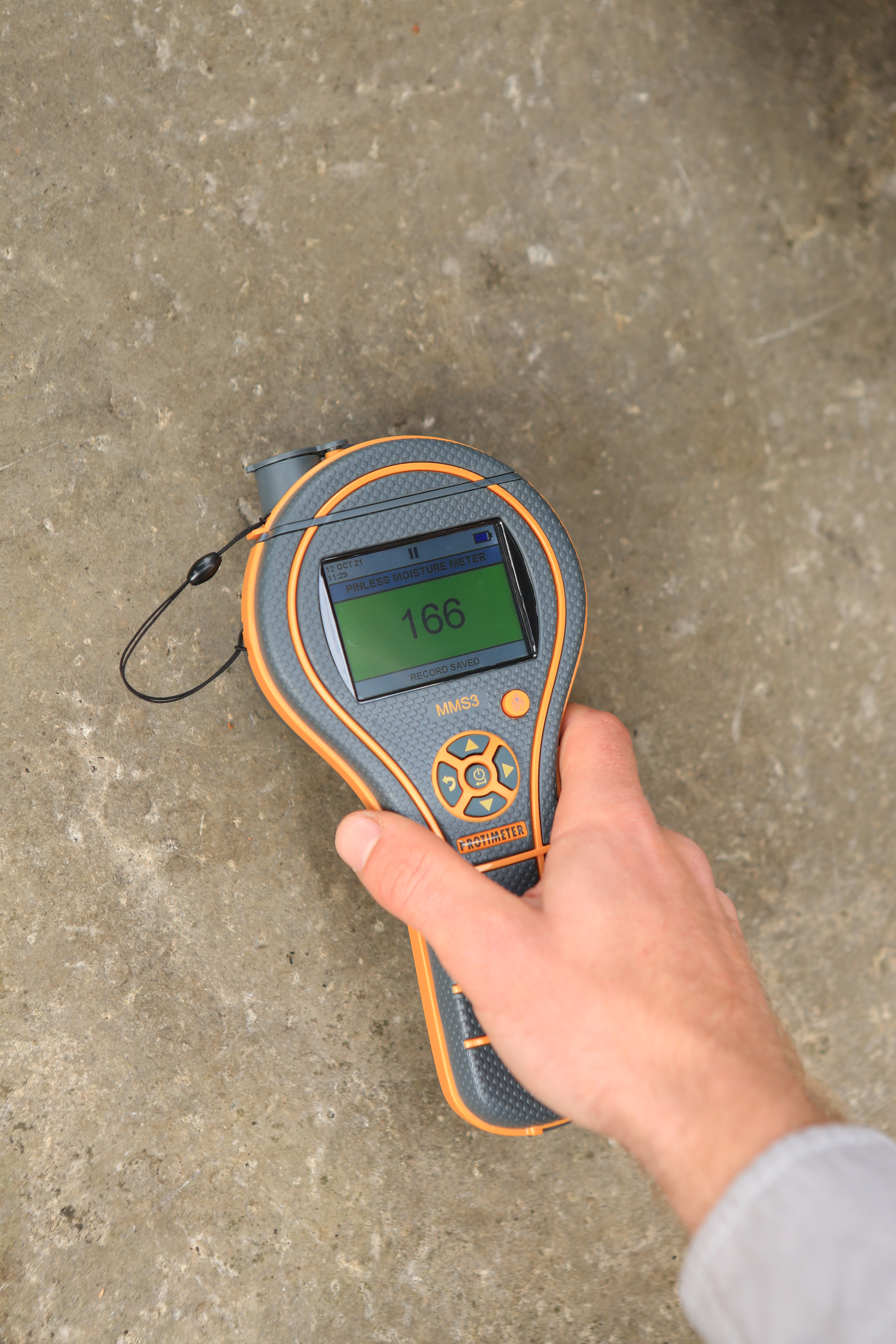

.jpg?width=1200&length=1200&name=Moisture%20on%20stone%20(1).jpg)
Features

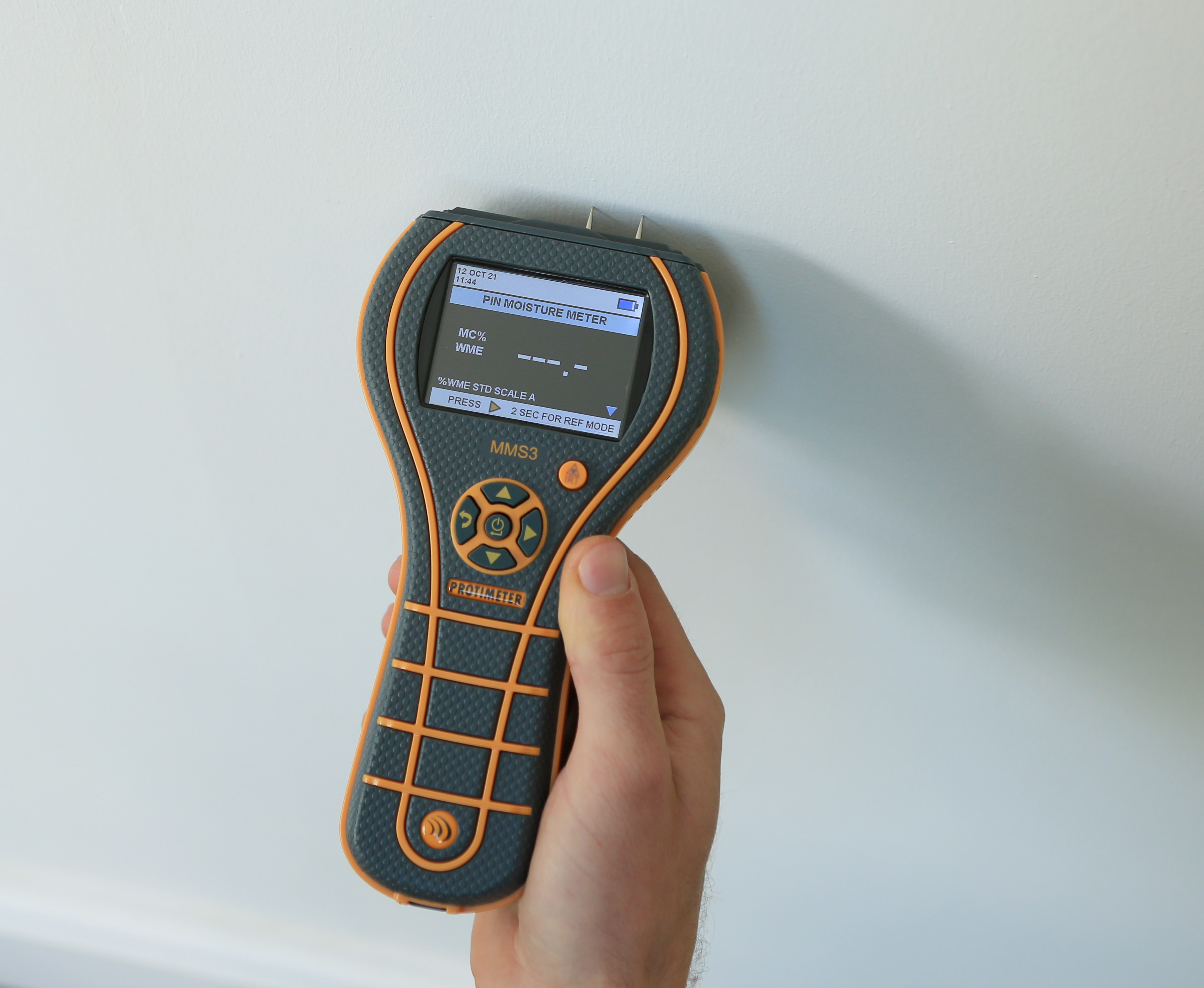

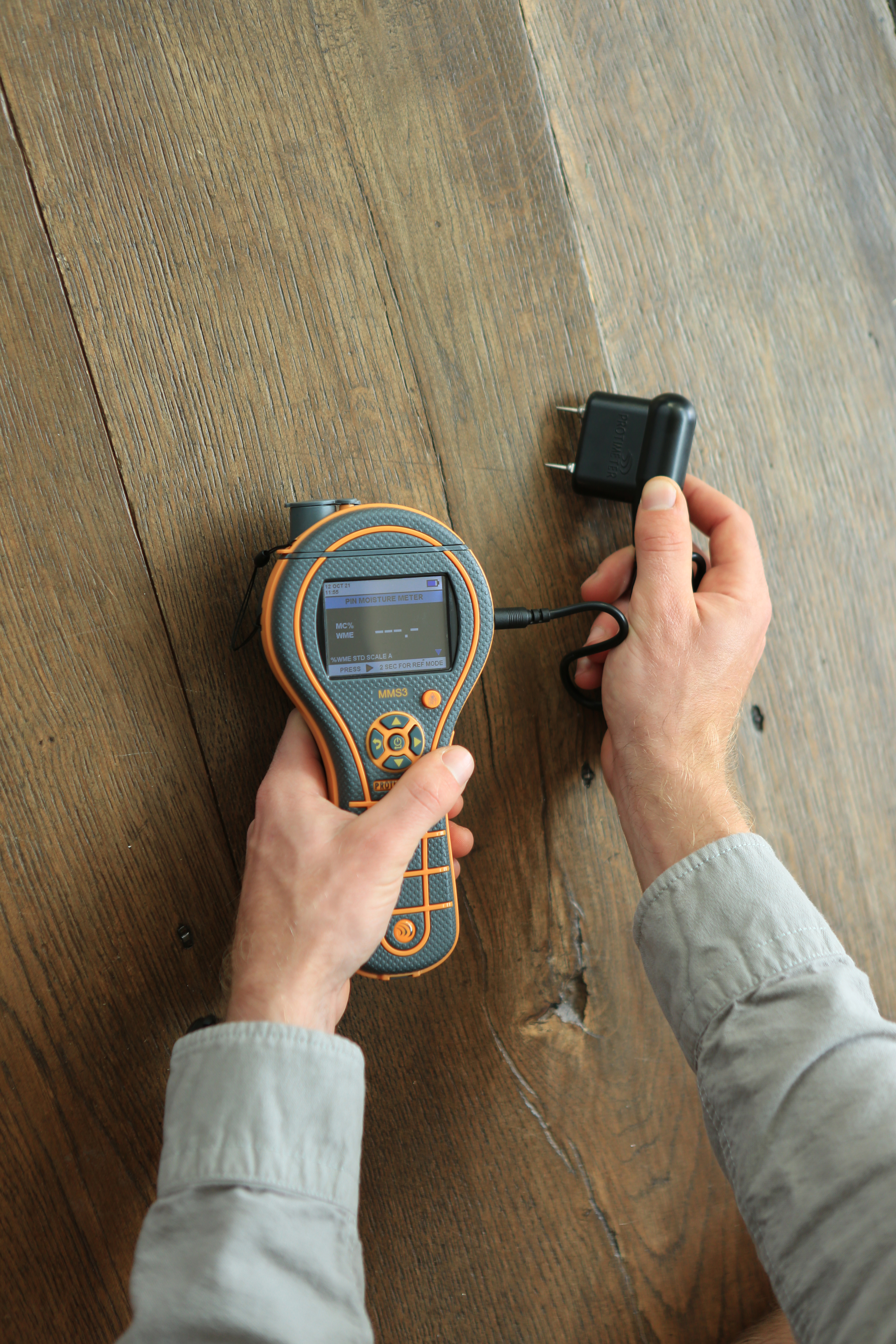

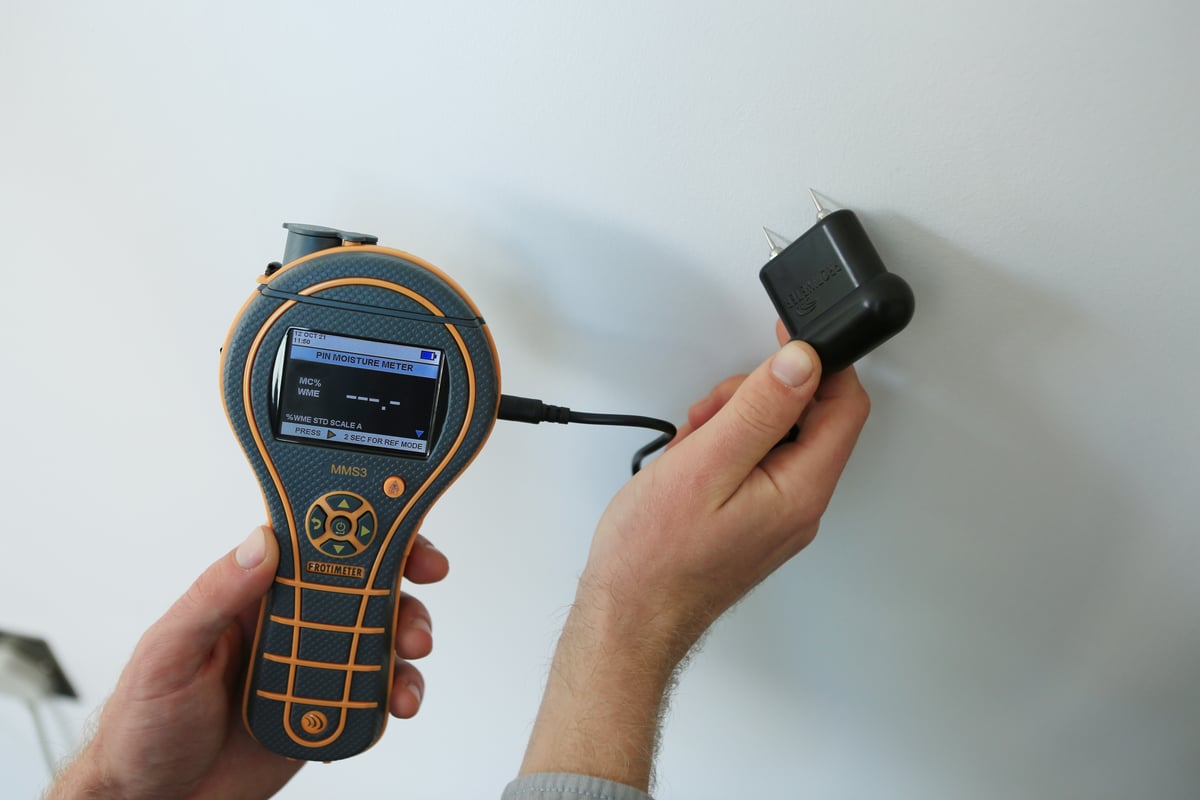

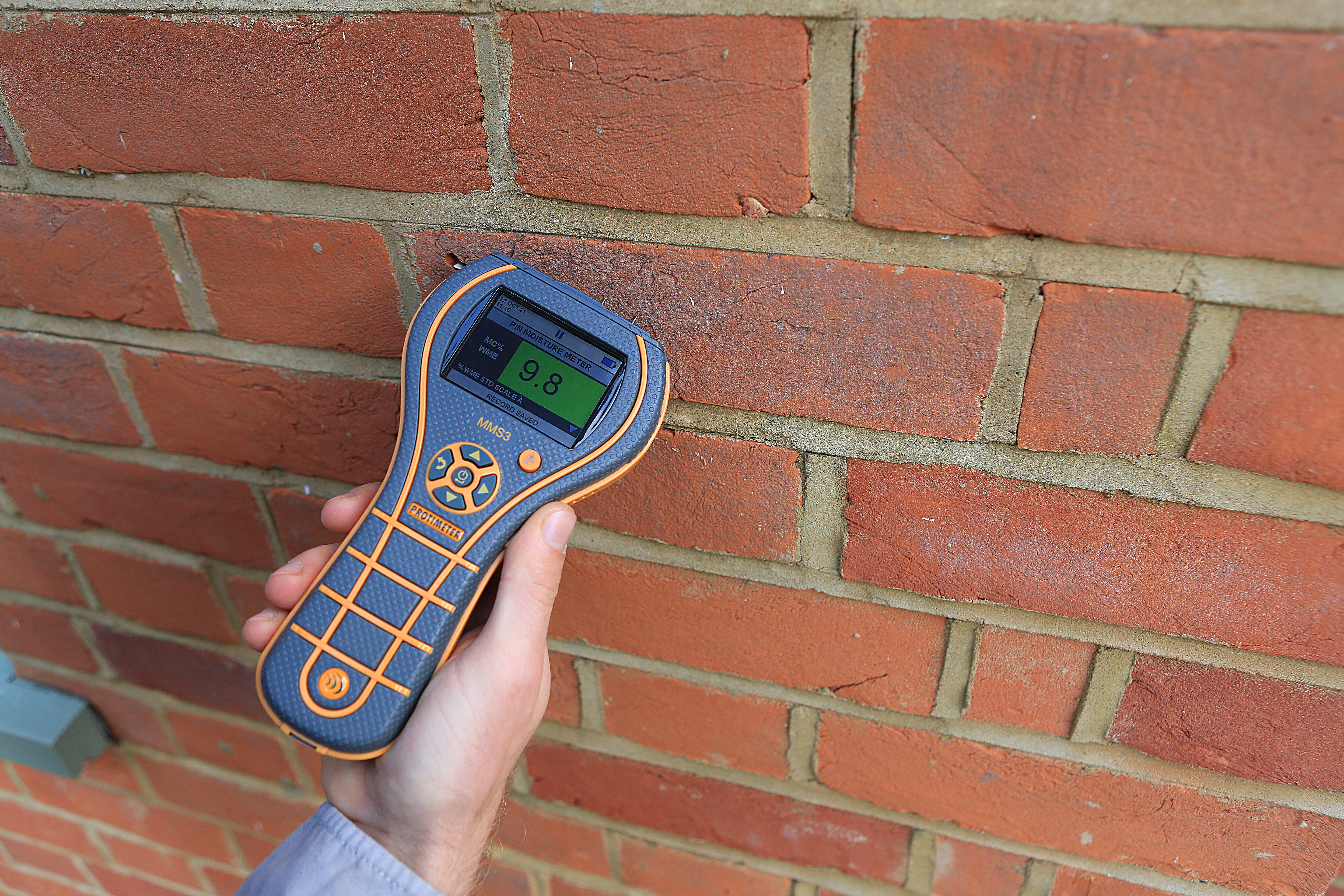

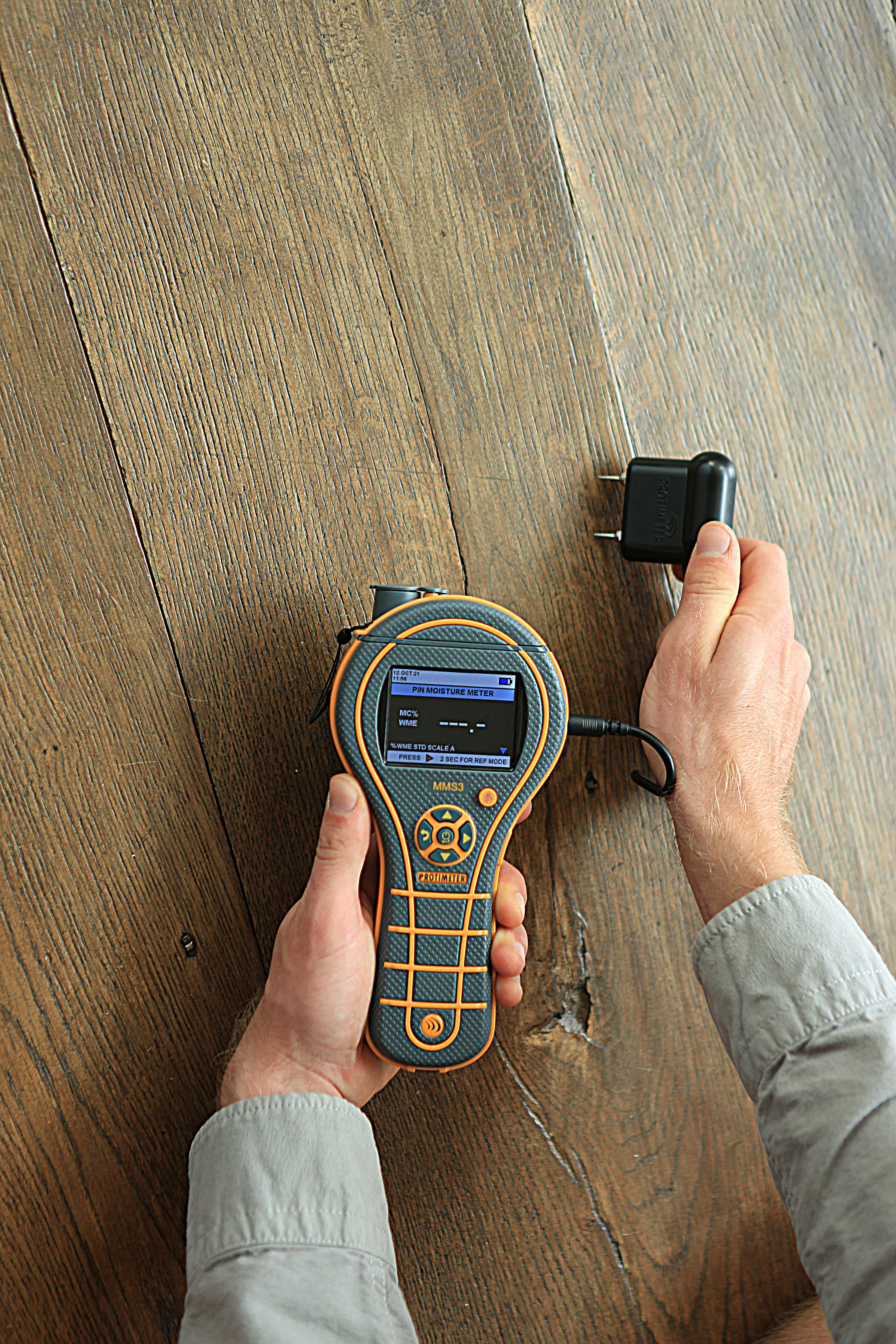

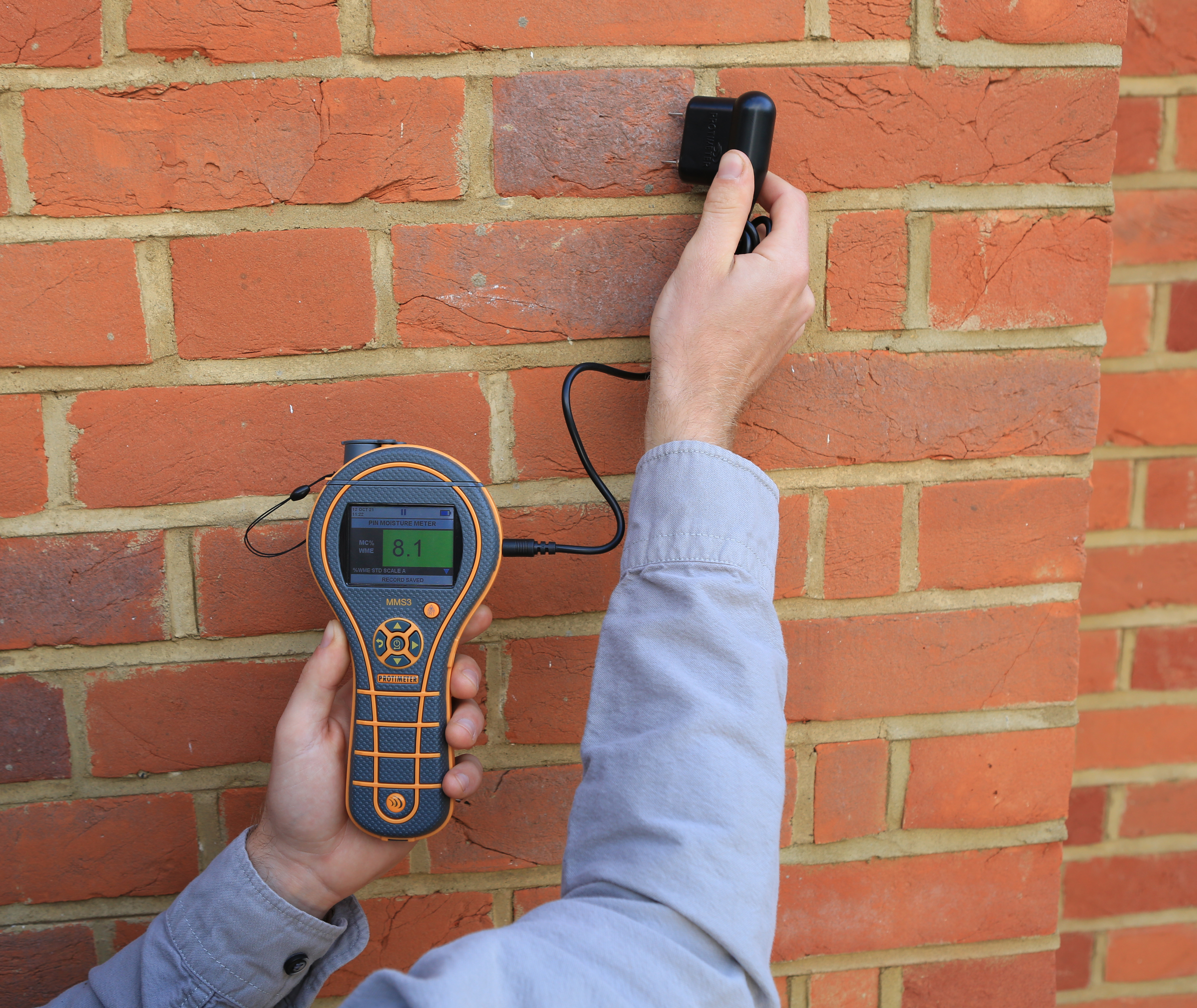

- Pin moisture measurement with built-in calibration check

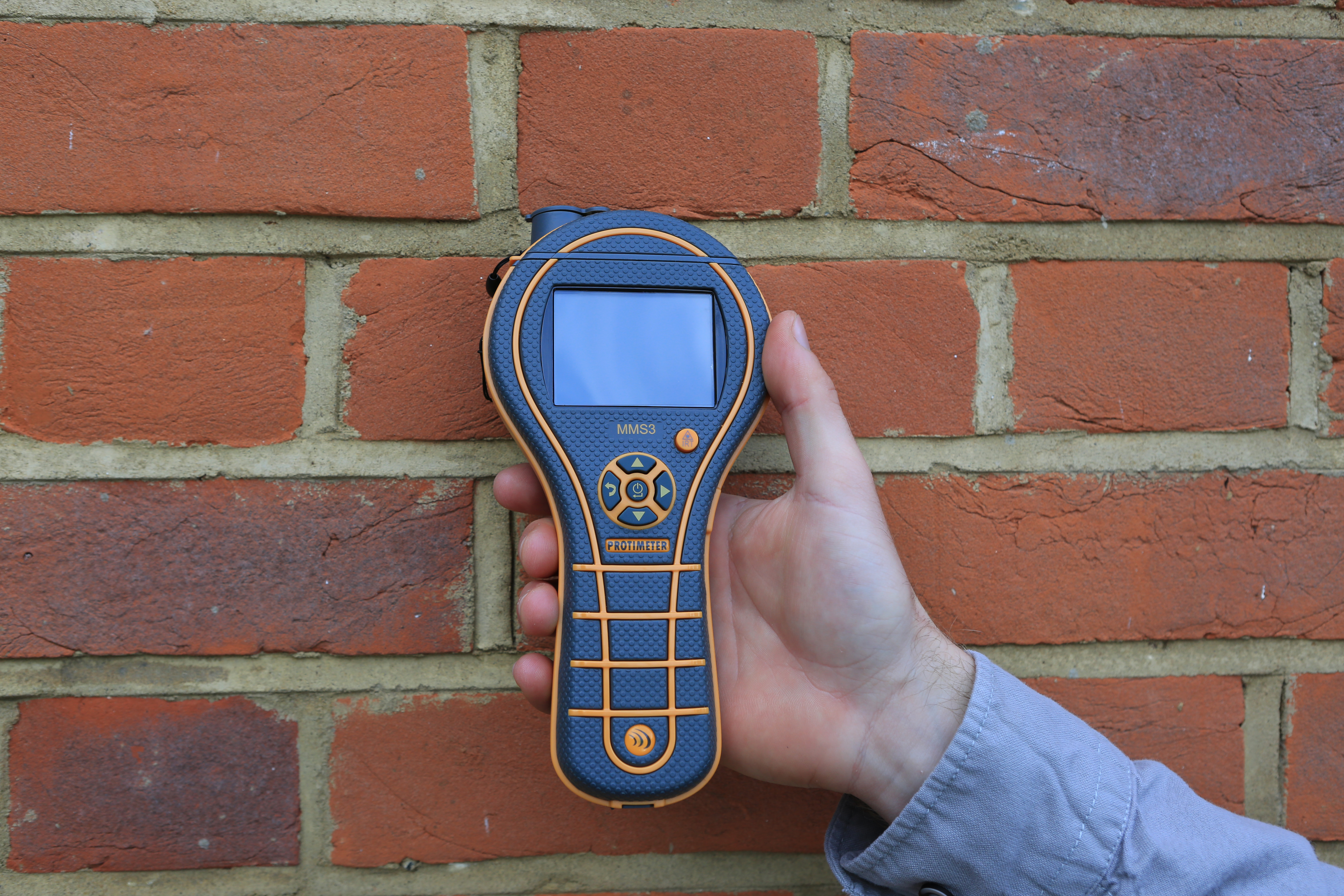

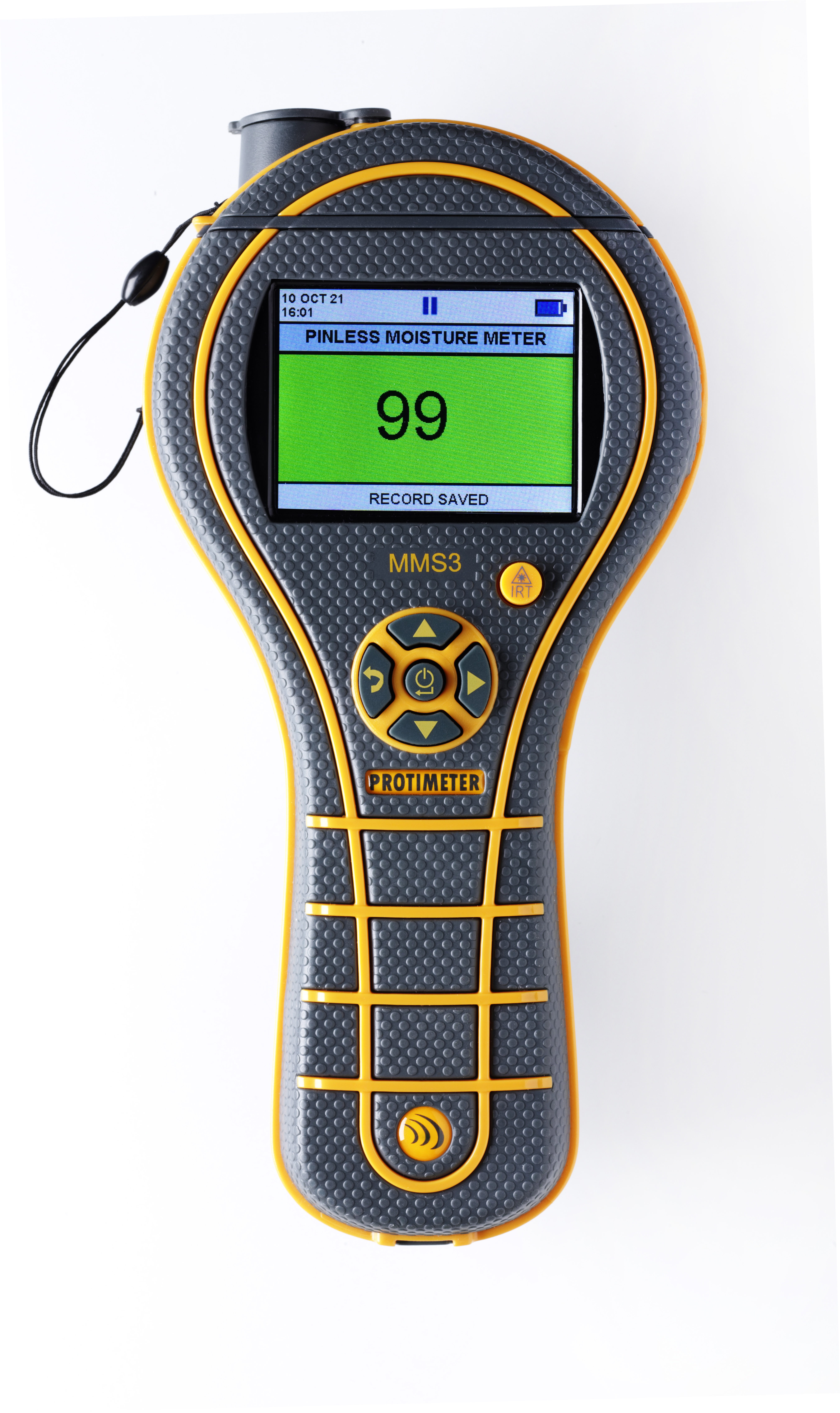

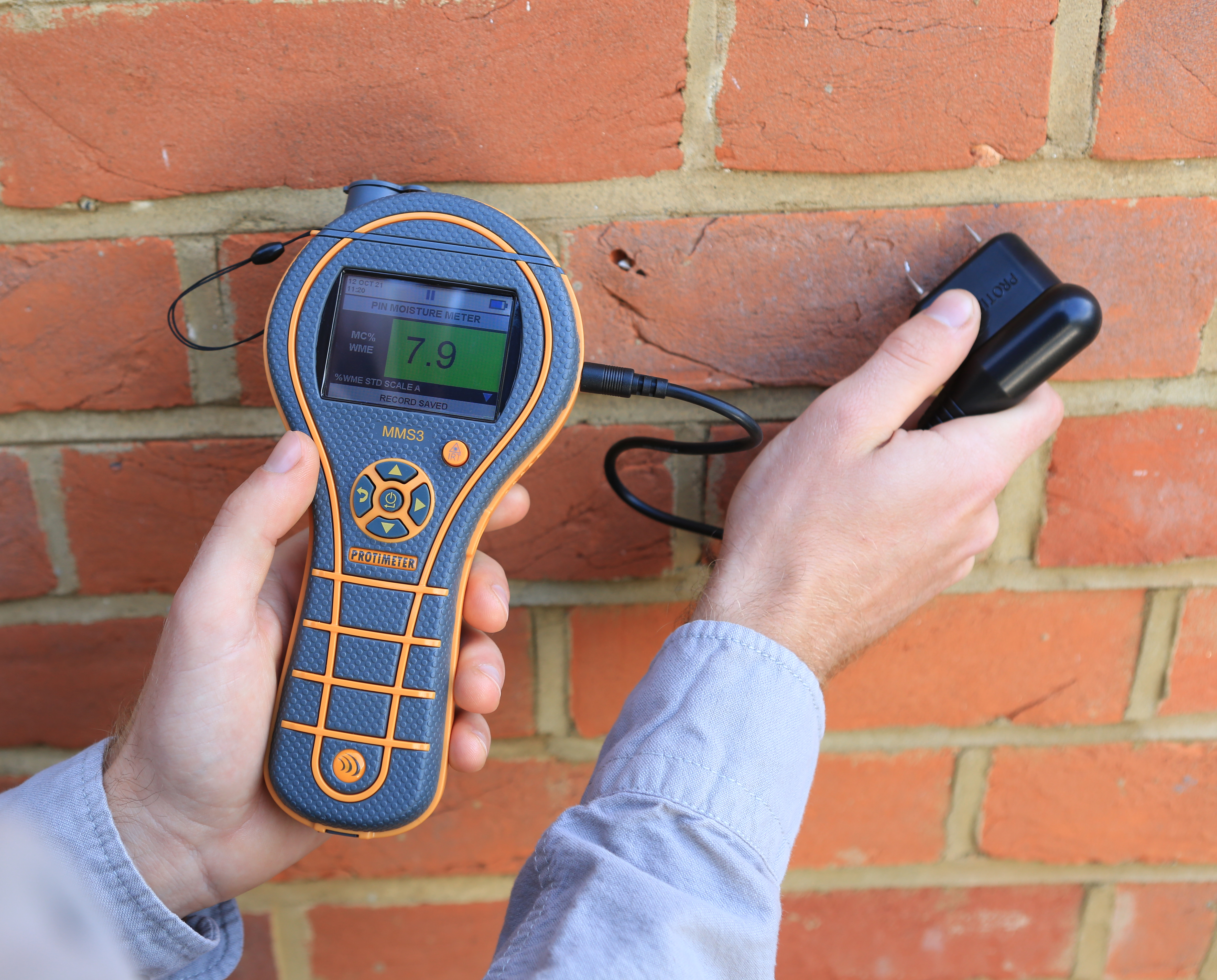

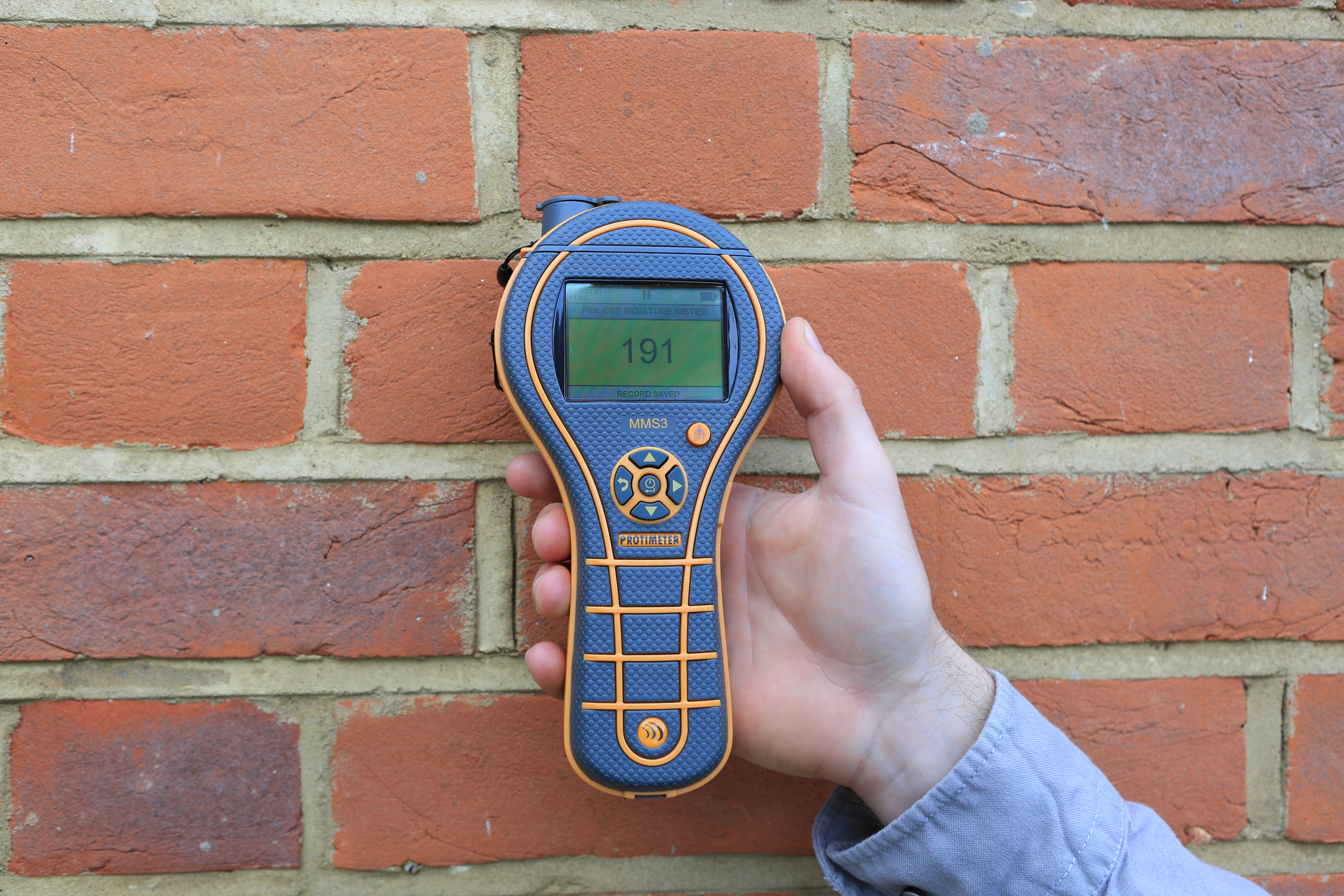

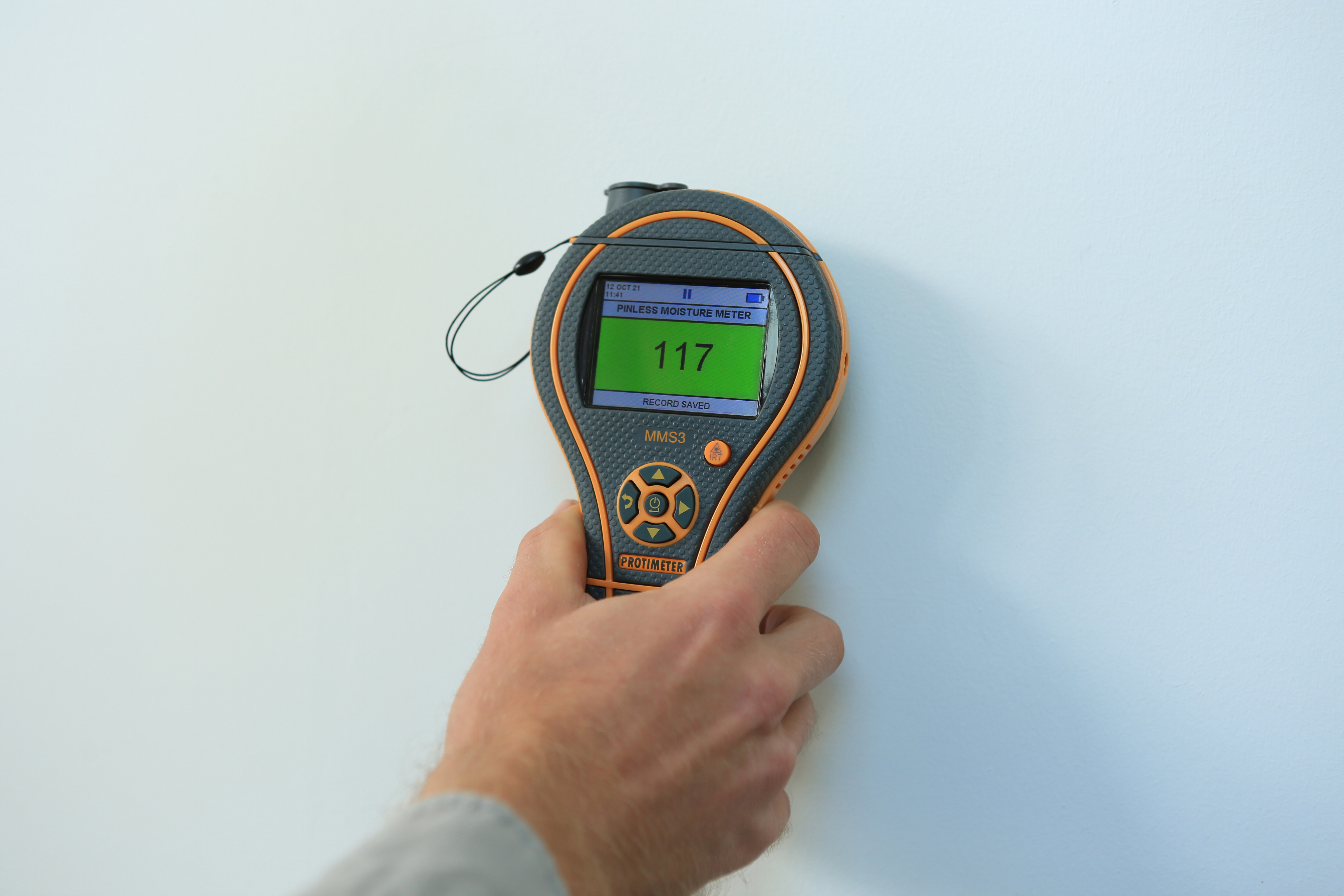

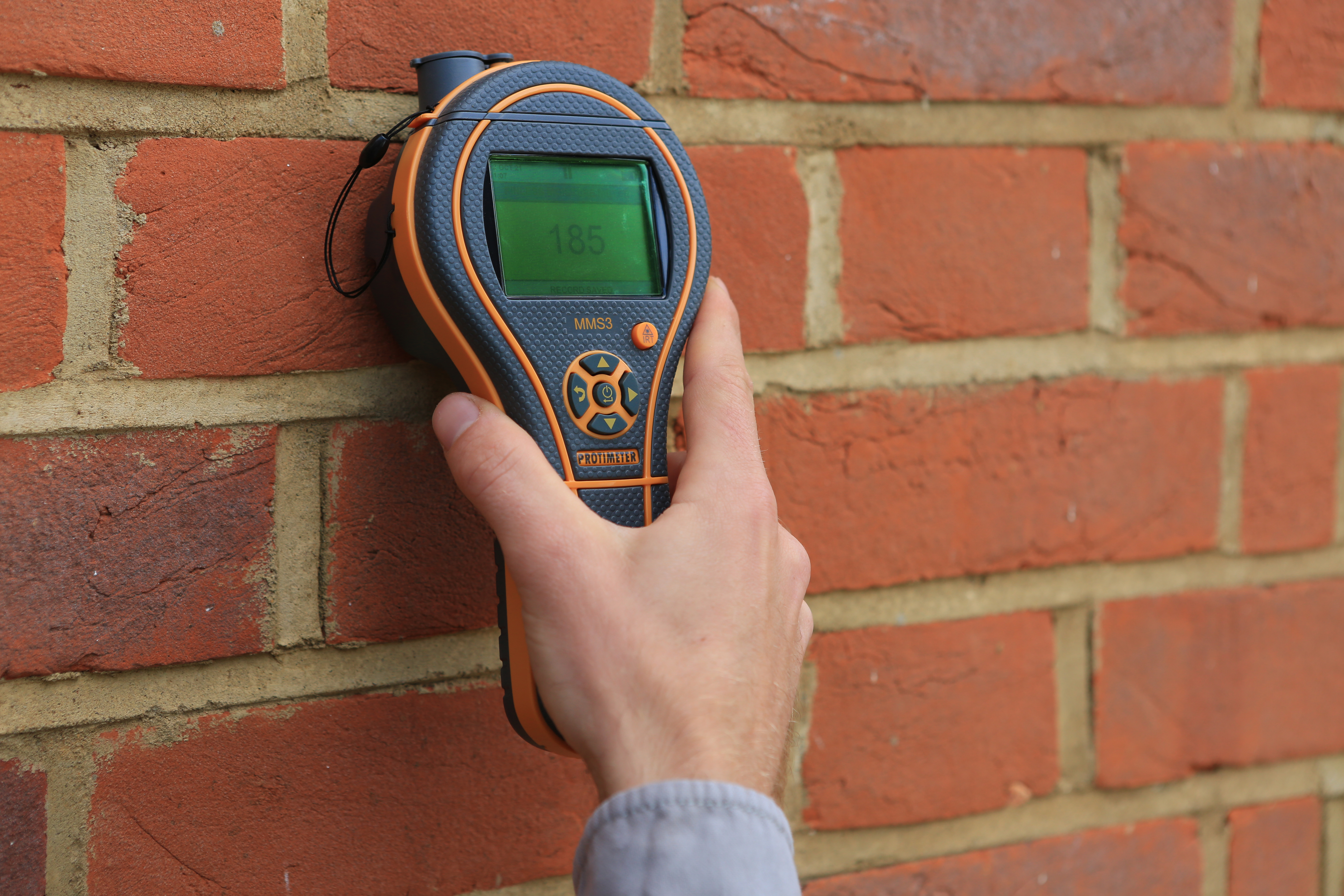

- Improved non-invasive moisture measurement with sensitivity mode feature and simple field calibration
- Non-contact surface temperature measurement with Infrared (IR) laser pointer
- Fast Response
- Manual and automatic data logging up to 10,000 records
- File viewer mode to view logged data
- Data reporting and processing through Protimeter PC software
- Live data stream over Bluetooth, data log into file or embedded into an image in Protimeter app
- Web interface to view the logged data

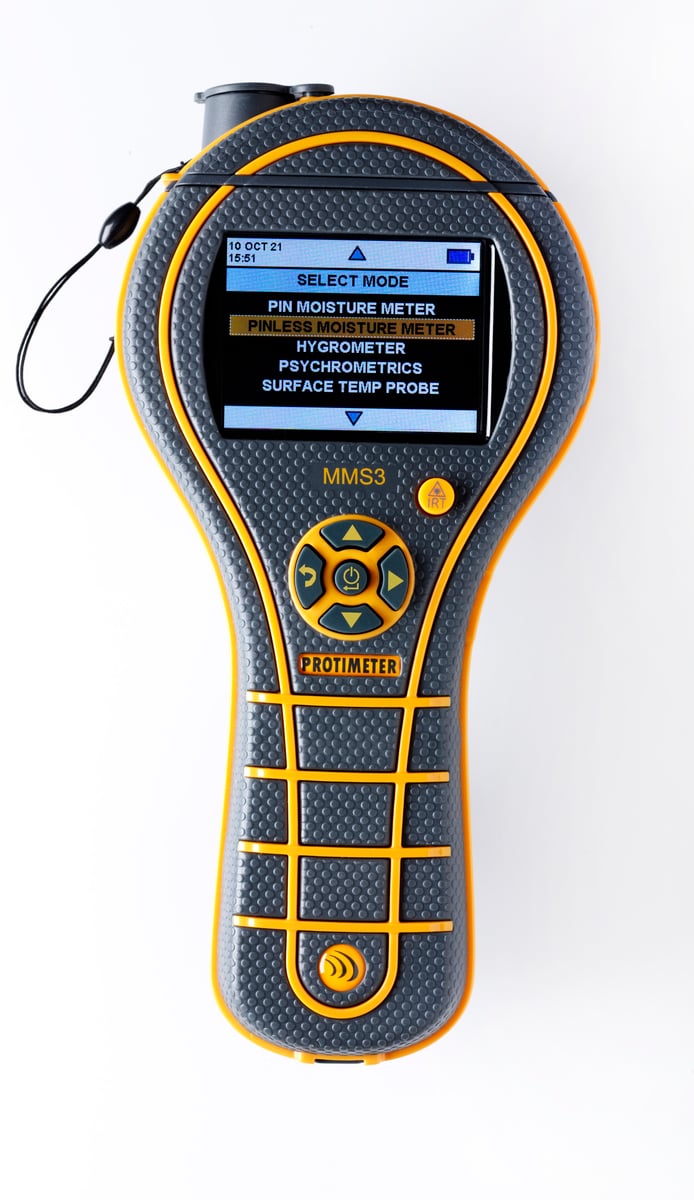

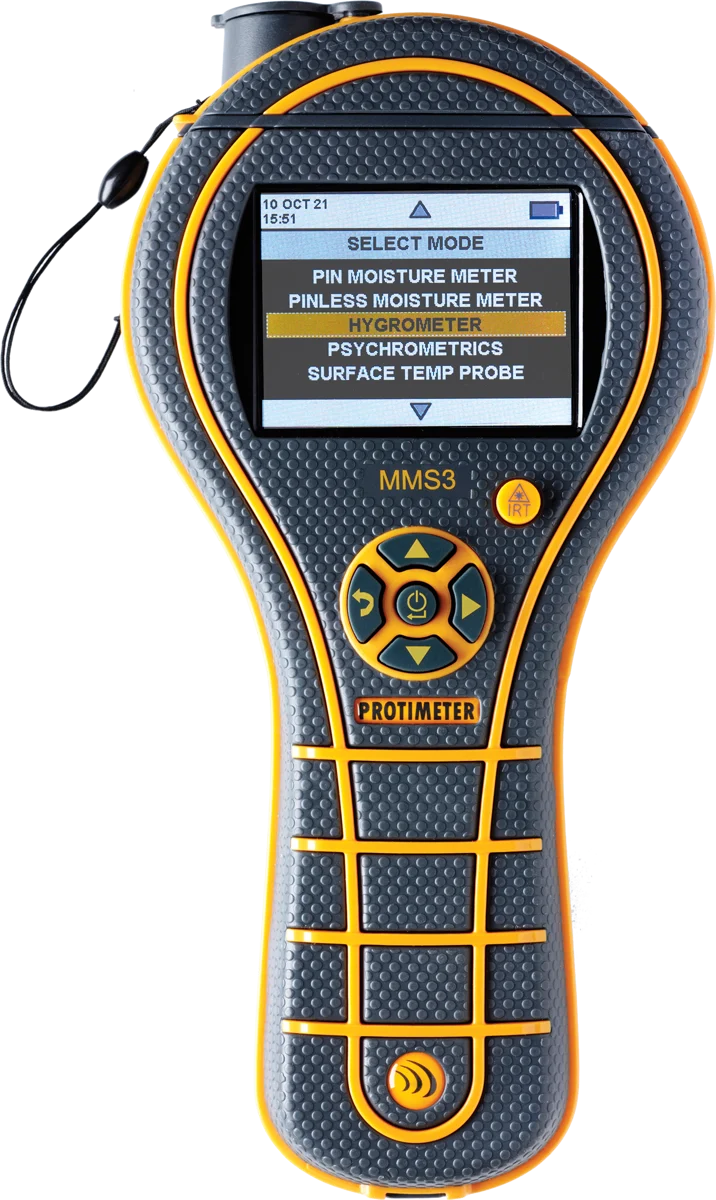

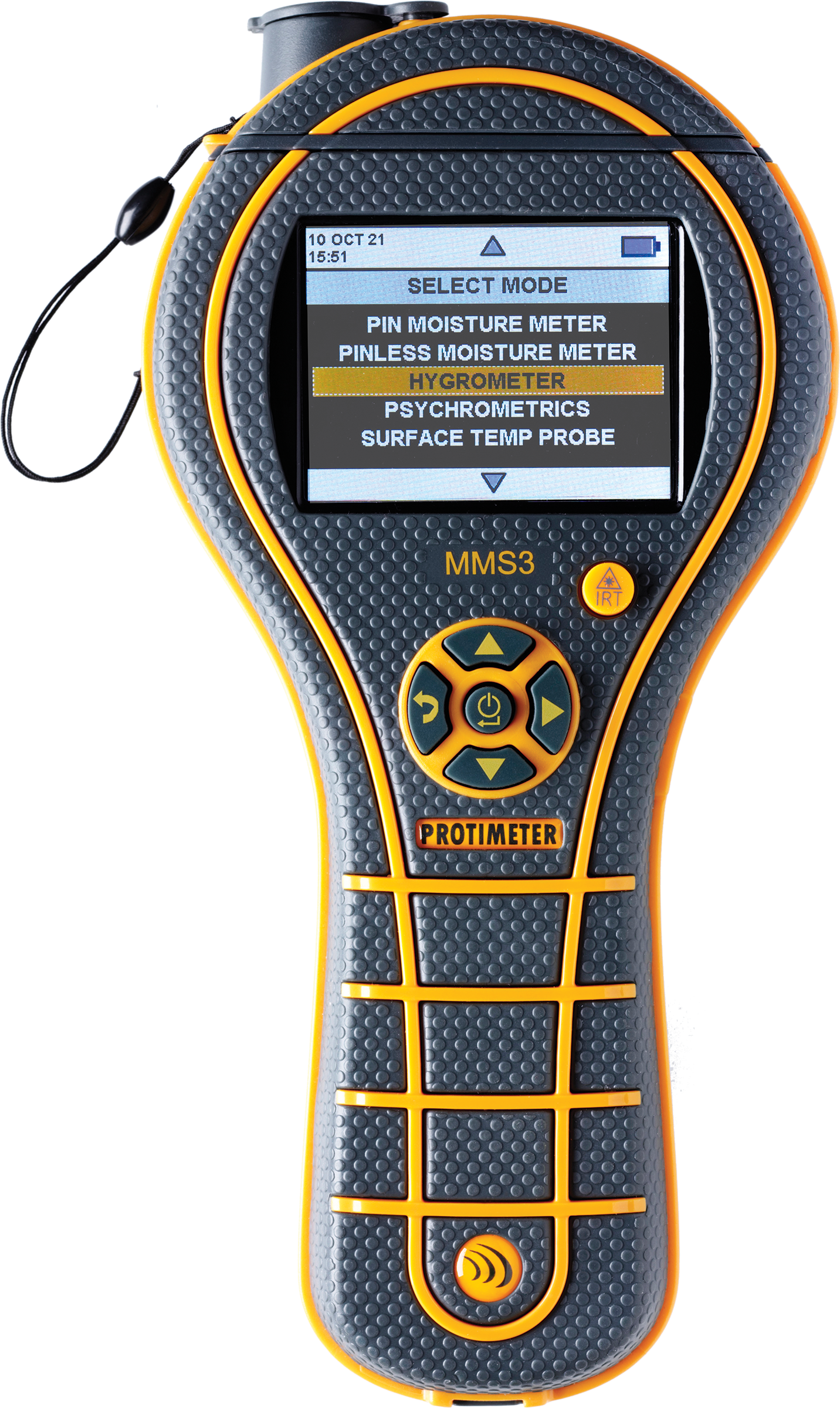

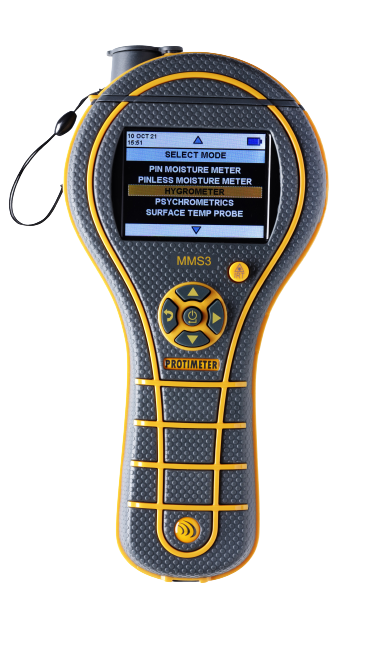

- Easy-to-use interface with color display and multi-language capability
- Firmware upgradable
Benefits

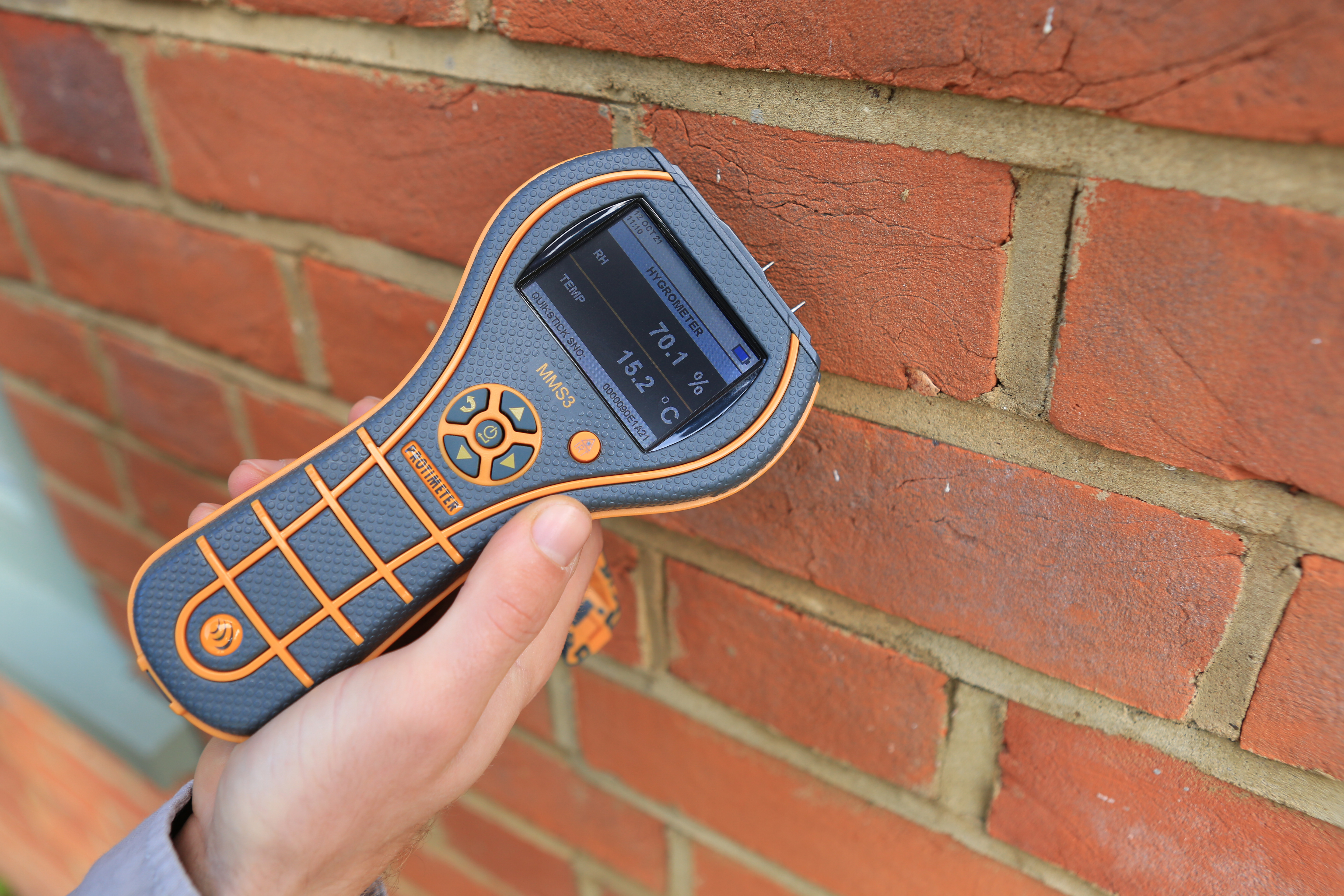

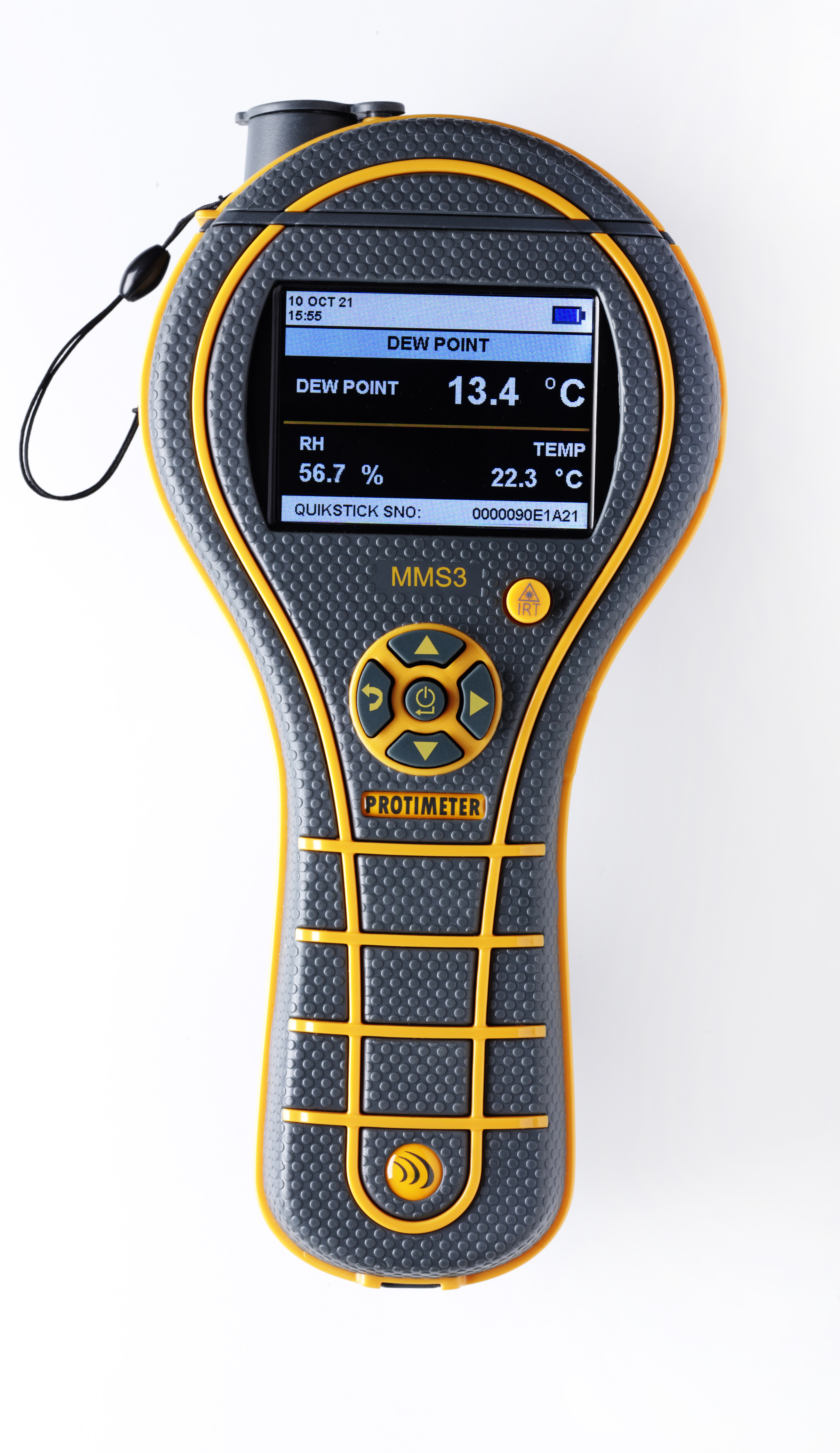

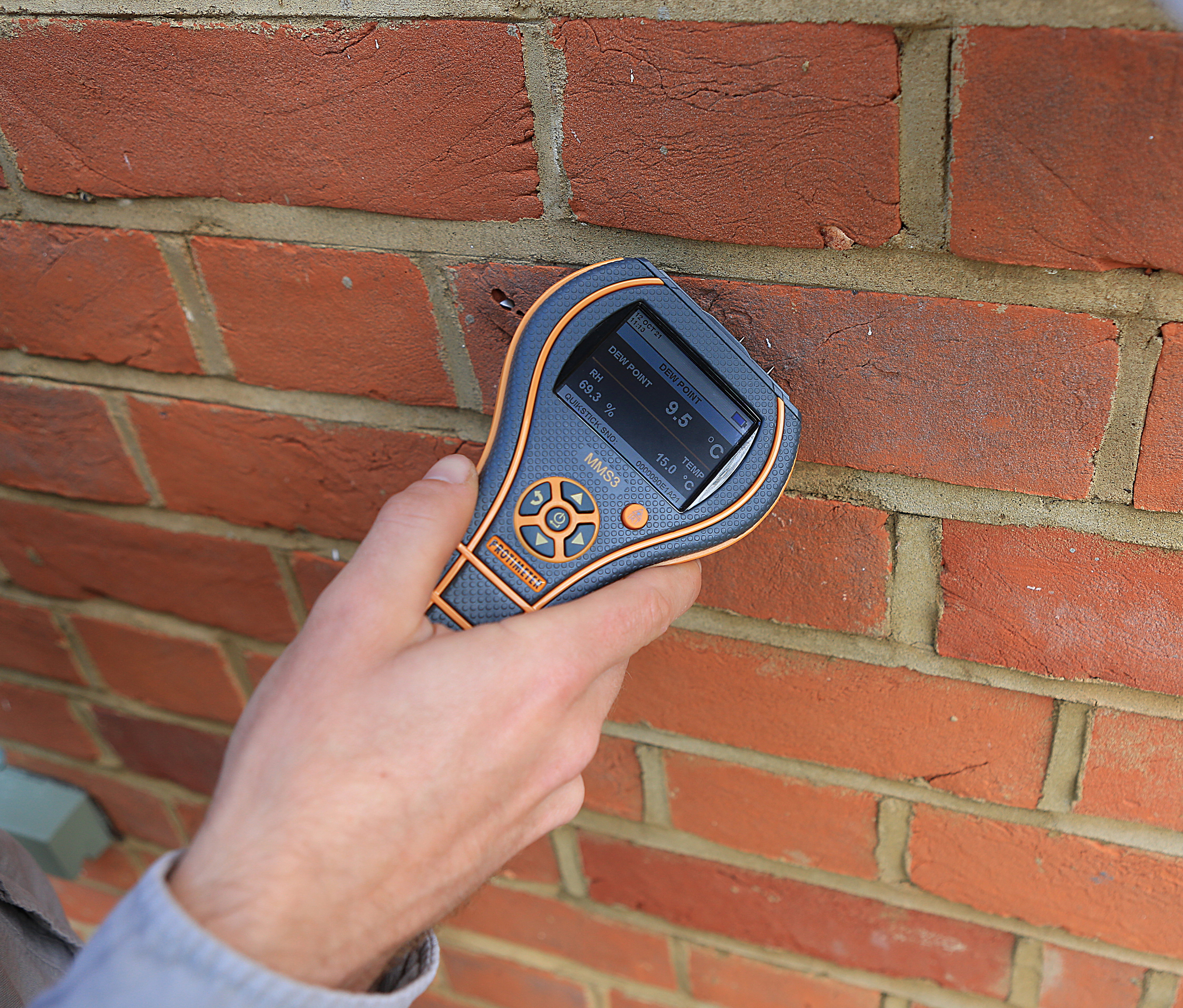

- Fast responding hygrometer speeds up building surveys
- Replaceable humidity and temperature sensor
- No need to plug in multiple accessories

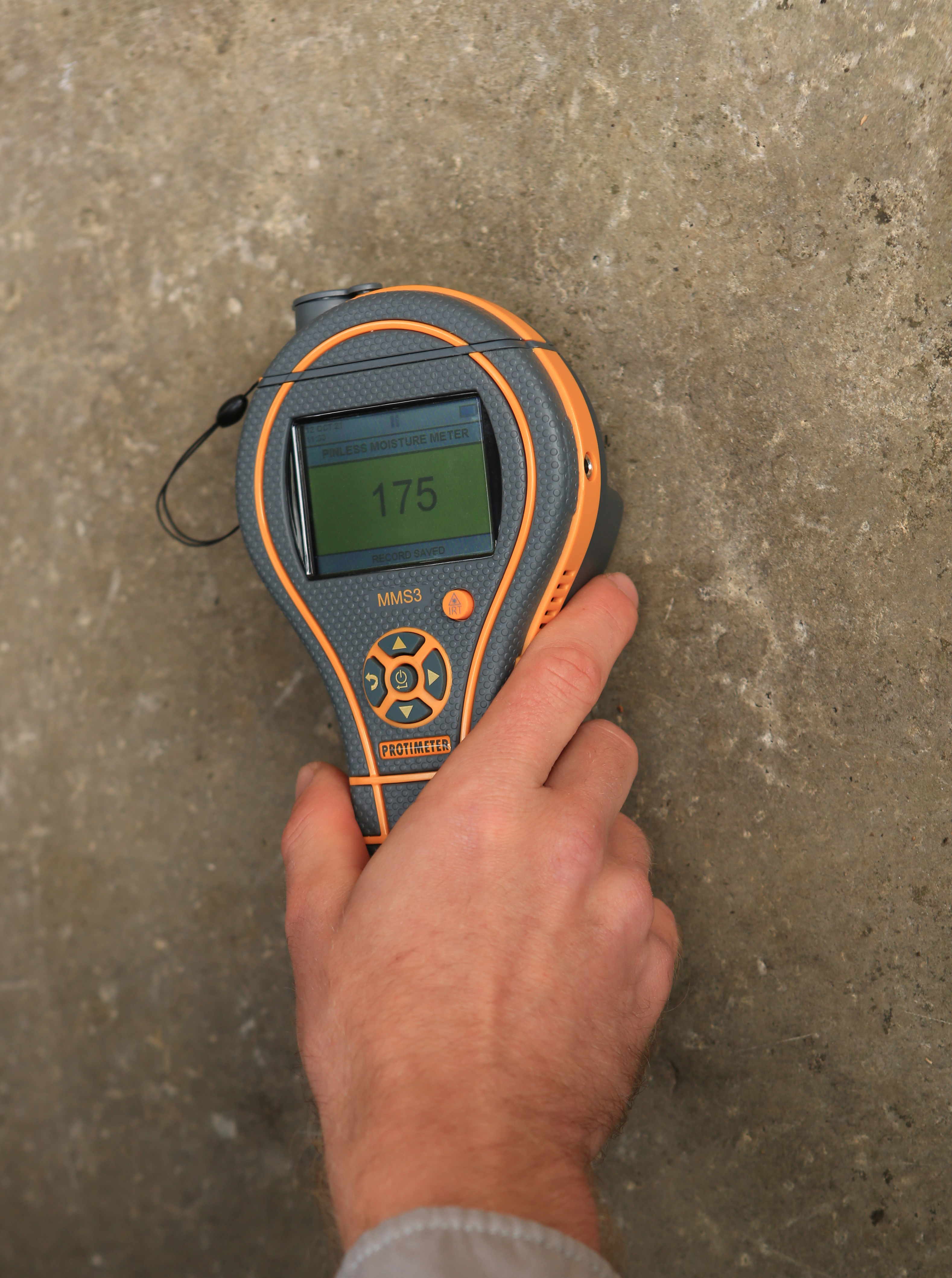

- Non-invasive measurement not adversely affected by surface moisture
- Highly accurate
Applications
When concise and accurate environmental readings need to be reported, the MMS3 gets the job done. The ability to record readings instantly at the push of a button makes this instrument ideal for many applications including:
- Fire and flood restoration
- Concrete floor moisture measurement
- Home inspection
- Building survey
- Moisture mapping
Options
Specifications
| Gross Weight |
Instrument only with batteries 10.9 oz (309 g) |
| Regulatory Compliance |
CE RoHS ETL UKCA |
| Plug-In Surface Temperature Probe |
(BLD5806) Range: 32°F to 158°F (0°C to 70°C) Accuracy: ±1.3°F (±0.7 °C) @ 77 °F (±25° C) |
| Display |
2.4" TFT Color LCD 320x240 Resolution Blacklight with adjustable brightness Outdoor Mode |
| Batteries (Included) | 2xAA Alkaline Batteries ~ 2700mAH |
| Warranty |
Standard Limited Warranty for 24 months on mechanical or manufacturing defects. Does not include wearing part or accessories., which have a 12 month warranty for normal use. |
| Moisture Measurement Range |
Pin (% WME): 6% to 100% (Readings over 30% are relative.) Non-Invasive (RF): 60 to 999 Relative, up to 3/4" (19mm) deep in standard mode and up to 5" (12cm) deep in sensitivity mode (varies with material under test.) |
| IR Surface Temperature Probe Range |
LASER Pointer: 12:1 (D:S) Ratio Range: -4°F to 176°F (-20°C to 80°C) Accuracy ±3.6°F (±2°C) |
| Hygrostick Data (Nominal) | 30% t 40% RH (±3% RH) at 68°F (20°C) 41% to 98% RH (±2%) at 68°F (20°C). Range 32°F to 122°F (0°C to 50°C) ±0.6°F (±0.3°C) |
| Quickstick Data (Nominal) |
0% to 10% RH, ±3% RH at 68°F (20°C), 10 to 90% RH, ±2% RH at 68°F (20°C), Range 32°F to 122°F (0°C to 50°C) ±0.6%°F (±0.3°C) Nominal response 30% to 90% |
| Data Storage |
Manual and Automatic Logging: Store up to 10,000 results in the device with date and timestamp from all instrument functions. Store results of interest in cloud from live data on the Protimeter app into a file or embed into an image to be accessed through phone/tablet and/or web interface. |
